5301-AQM1 and 5301-AQM2 Remote
Air Quality and Environmental Monitor

Indoor Air Quality Monitors

particles plus5301 aqm

Models 5301-AQM1 and 5301-AQM2

(CO2, Temp, RH, and TVOC)

The Particles Plus® 5301-AQM1 and 5301-AQM2 Remote Air Quality Monitor measures and displays particle mass concentrations for PM1, PM2.5, PM5 and PM10 including temperature, relative humidity, CO2 (and TVOC in the 5301-AQM2). This wall- mounted instrument is the most versatile remote air quality monitor available for fixed installations. The advanced power management and the industry’s first sleep mode, allows for long intervals between samples over extended and unattended operations. The AQM Series can easily integrate into a building automation and facility monitoring system via Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.

The 5301-AQM1 and 5301-AQM2 report and display 6 user-selectable particle size channels, as well as Carbon Dioxide (CO2), temperature, and relative humidity. The instrument monitors PM1, PM 2.5, PM5, PM 10 (and any other PM size value the user specifies) with an easy-to-use Channel Management control panel. The instrument also monitors flow, sensor status, date of last calibration, serial number, laser on-time, and date of manufacture for easy maintenance and warranty management. The remote monitor operates using a long-life internal 0.1 CFM pump.

View data and generate environmental reports real-time on screen, via printer or USB key, through the versatile output options, or export to Particles Plus® Instrument Management Software during monitoring system or network failure. Particles Plus® instruments can be controlled and monitored remotely via web browser from any PC, tablet or smartphone supporting up to 20 concurrent user sessions.

The 5301-AQM1 and 5301-AQM2 particle counter stores 45,000 time-stamped particle count and environmental data records for redundant protection in the event of a monitoring system or network failure. The AQM Series mass concentration mode approximates density in μg/m³ and PM (particle matter) allowing for density and refractive index corrections to ensure accuracy. All Particles Plus® counters meet ISO 21501-4 and JIS B9921. These instruments ensure compliance with an on-board pulse height analyzer.

Measures 0.3 μm to 25 μm
0.1 CFM (2.83 LPM)
Large easy-to-use icon driven color touch screen display
Approximates mass concentration in μg/m³ and indicates simultaneous PM values
Industry’s highest concentration of 30,000,000 particles/ft³ @ 10% coincidence
User-selectable, adjustable particle channel sizes
5301-AQM1 measures CO2, temperature, and humidity. The 5301-AQM2 includes TVOC.
Stores up to 45,000 sample records
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232
Static or dynamic IP address (DHCP) connects to a local network or the Internet
Seamless integration into a facility monitoring system with MODBUS RTU, ASCII or TCP
Internet of Things JSON output allows for cloud based data storage and retrieval
Included software permits remote operations, data management, diagnostics and more
Displays and externally prints information with optional printer
Internal audible alarm with user selectable thresholds for all environmental parameters
Easy configuration and transferable from instrument to instrument
User friendly field calibration with single or dual point offsets for all sensors
Remote diagnostics allows for remote service investigation through the Internet
Long life laser diode technology
Lightweight stainless steel enclosure
2 year limited warranty, extended warranties available.
Models5301-AQM1 and 5301-AQM2
Size Range0.3 to 25 μm
Size ChannelsFactory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning
Flow Rate / Accuracy0.1 CFM (2.83 LPM) / +/- 3%
Aerosol Concentration Range0.01 to 20,000 μg/m³
Light SourceLong life laser diode
Concentration Limits30,000,000 particles/ft³ @ 10% coincidence
Resolution0.0003 μg/m³
Zero StabilityNo appreciable drift
Count ModesReal-Time Meter and graph, cumulative/differential count/m³ and count/ft³, and mass concentration (PM)
Log IntervalMinimum 1 second with no hold time, maximum 99 hours
CalibrationNIST traceable
Display4.3" (10.9 cm) WQVGA (480x272) color touch screen
Printer(Optional) External thermal printer available
Internal Vacuum PumpInternal pump with automatic flow control
Filtered ExhaustInternal HEPA filter
Number of Channels6 Calibration for custom size channels available
Custom Size ChannelsCalibration for custom size channels available
Audible AlarmAdjustable built-in alarm
Communication ModesEthernet, USB. (Optional) Wireless 802.11 b/g, RS485 or RS232.
Environmental Sensors 5301-AQMIncludes NDIR CO2 (0-5000 ppm, resolution 1 ppm, accuracy ±1% FS, Response rate 20 seconds), temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% RH
Environmental Sensors 5302-AQMIncludes all sensors in the 5301-AQM1 and TVOC PID (standard on the 5301-AQM2), 0-50 ppm / minimum detection level 5 ppb, accuracy ±1.5%, Response rate <3 seconds
AlarmAlarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
StandardsISO 21501-4 and JIS B9921
Instrument CalibrationRecommended minimum once per year. Gases, temperature and humidity sensors field calibratable.
External SurfaceStainless steel
Dimensions (L x W x H)5.22” x 2.25” x 9.13” (13.3 cm x 5.7 cm x 23.2 cm) includes barb fittings
Weight4 lb (1.8 kg)
AccessoriesOperating Manual and IMS Software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, and power supply
Optional AccessoriesCalibration cap for gas sensor, carrying case, external printer, isokinetic probes, barb fittings, spare battery, external battery charger, printed manual, and IMS-RT monitoring system
Data Storage45,000 sample records (rotating buffer) includes particle count data, environmental data, locations, times and annotations, scrollable on screen or printout
Sample Time1 second to 99 hours
Power110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty2 year limited warranty. Extended warranties available.

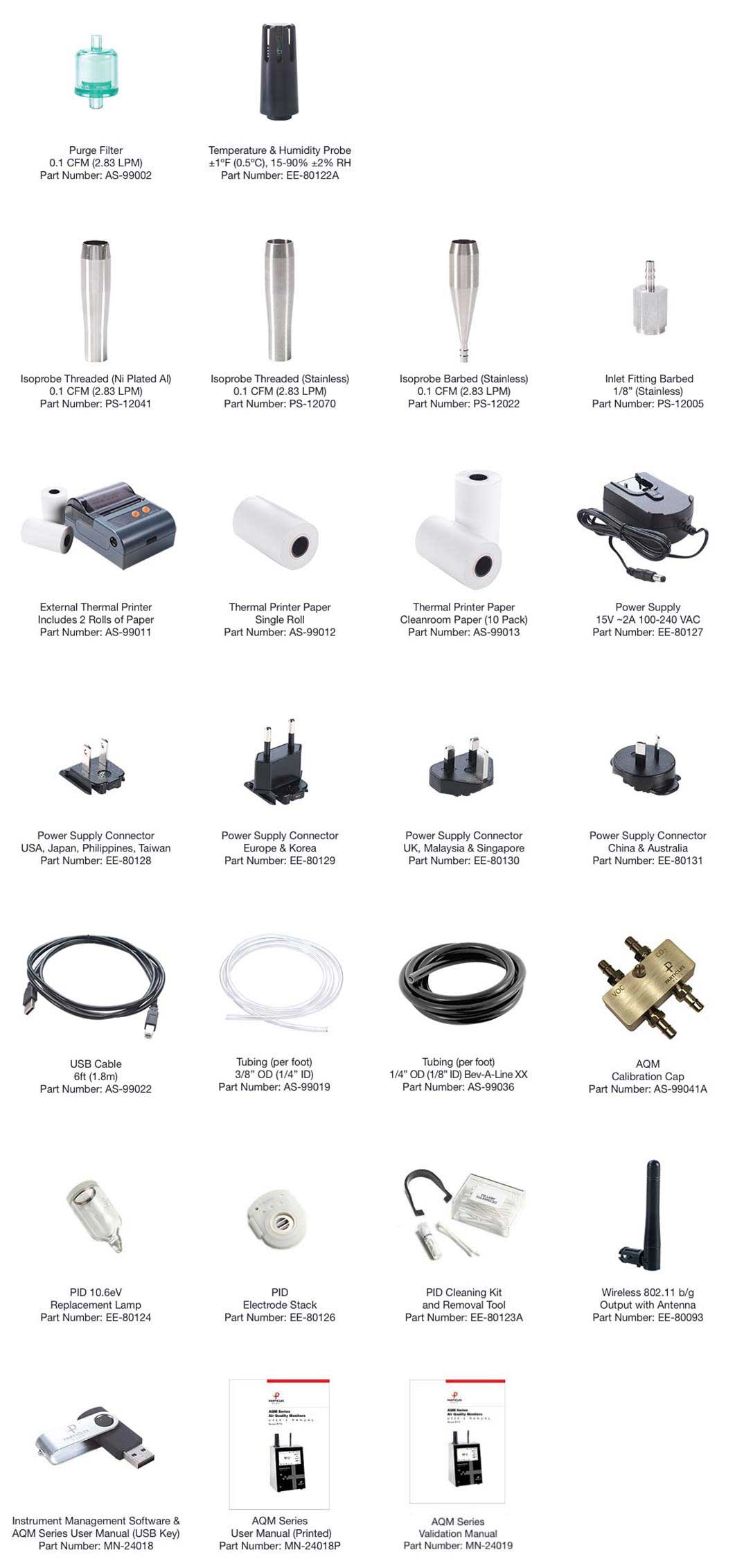

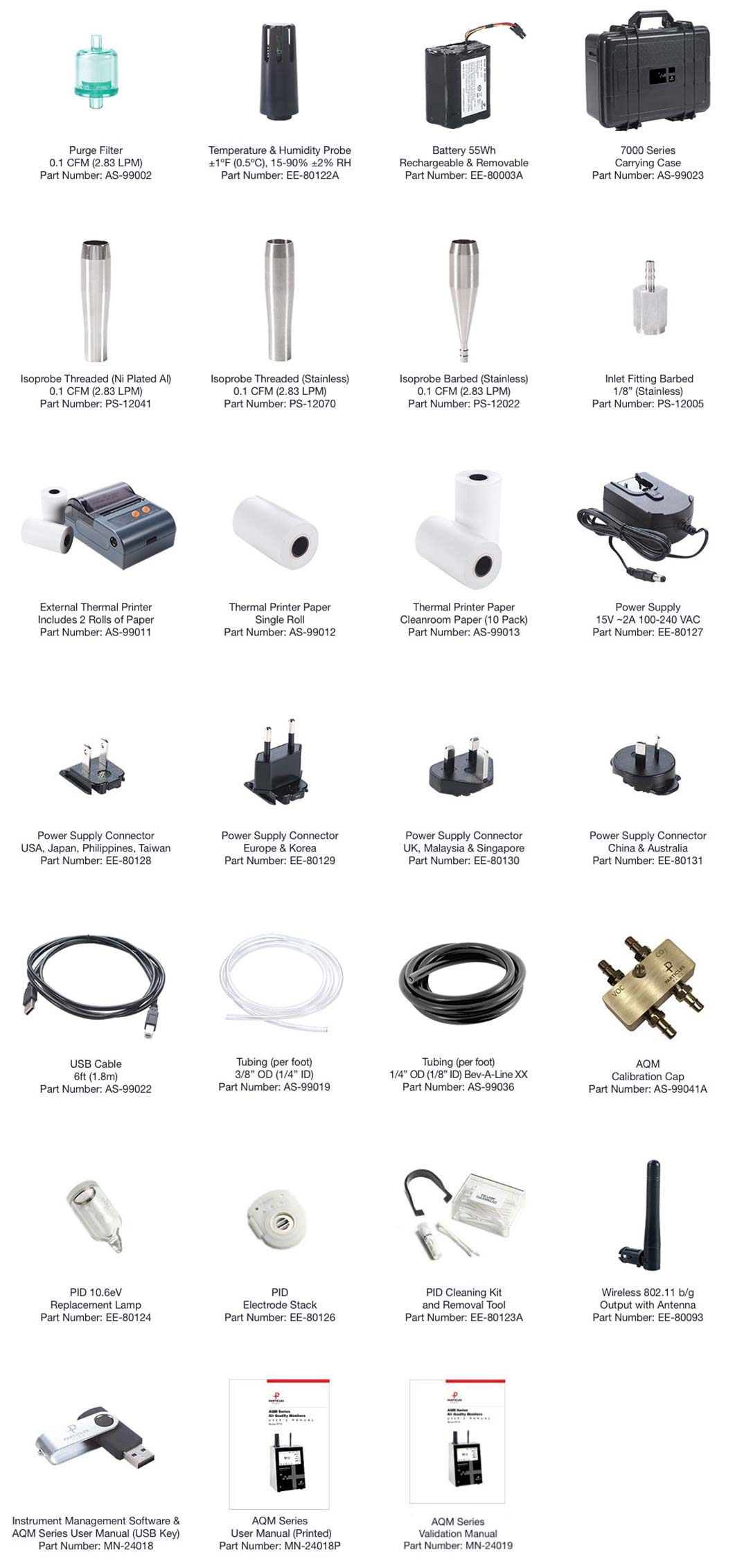

5301 5302 AQM
AS 99002 Filter 0.1 CFM 2.83 LPM
EE 80014A Temperature Humidity Probe
AS 99001 Remote Mounting Bracket
EE 80093 Wireless 802.11 b g Output with Antenna

Filter
0.1 CFM (2.83 LPM)
Part Number: AS-99002


Temperature and Humidity Probe
Part Number: EE-80014A


Remote Mounting Bracket Part Number: AS-99001


Wireless 802.11 b/g with Output Antenna
Part Number: EE-80092

PS 12041 Isoprobe Threaded 0.1 CFM 2.83 LPM Ni Plated Al
PS 12070 Isoprobe Threaded 0.1 CFM 2.83 LPM Stainless
PS 12022 Isoprobe Barbed 0.1 CFM 2.83 LPM Stainless
PS 12005 0.125 inch Inlet fitting

Isoprobe Threaded (Ni Plated Al)
0.1 CFM (2.83 LPM)
Part Number: PS-12041


Isoprobe Threaded (Stainless)
0.1 CFM (2.03 LPM)
Part Number: PS-12070


Isoprobe Barbed (Stainless)
0.1 CFM (2.83 LPM)
Part Number: PS-12022


Inlet Fitting Barbed
1/8 (Stainless)
Part Number: PS-12005

AS 99019 Sample Tubing .375 OD x .250 ID
AS 99019 Sample Tubing .375 OD x .250 ID
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot

Tubing (per foot)
3/8" OD (1/4" ID)
Part Number: AS-99019


Tubing (per foot)
1/4" OD (1/8" ID)
Part Number: AS-99018


Tubing (per foot)
3/8" OD (1/4" ID) Bev-A-Line XX
Part Number: AS-99037


Tubing (per foot)
1/4" OD (1/8" ID) Bev-A-Line XX
Part Number: AS-99036

AS 99022 USB Cable 6ft 1.8m
EE 80081 Power Supply 12V 2A 100 240 VAC
EE 80130 Power Connector UK MY SG
EE 80131 Power Connector Australia China

USB Cable
6ft (1.8m)
Part Number: AS-99022


Power Supply
15V ~2A 100-240 VAC
Part Number: EE-80127


Power Supply Connector
UK, Malaysia & Singapore
Part Number. EE-80130


Power Supply Connector
China & Australia
Part Number: EE-80131

EE 80129 Power Connector EU Korea
EE 80128 Power Connector USA Japan
PP Manual 1
PP Manual 1

Power Supply Connector
Europe & Korea
Part Number: EE-80129


Power Supply Connector
USA, Japan, Philippines, Taiwan
Part Number: EE-80128


5000-AQM Series
User Manual (Printed)
Part Number: MN-24004P


5000-AQM Series
Validation Manual
Part Number: MN-24006

MN 2400X Instrument Management Software User Manual

IMS Software & User Manual (USB Key)
Part Number: MN-24004
