8506 Handheld Particle Counter

particles plus 8306 handheld particle counter

Model 8506

0.5 – 25 µm @ 0.1 CFM

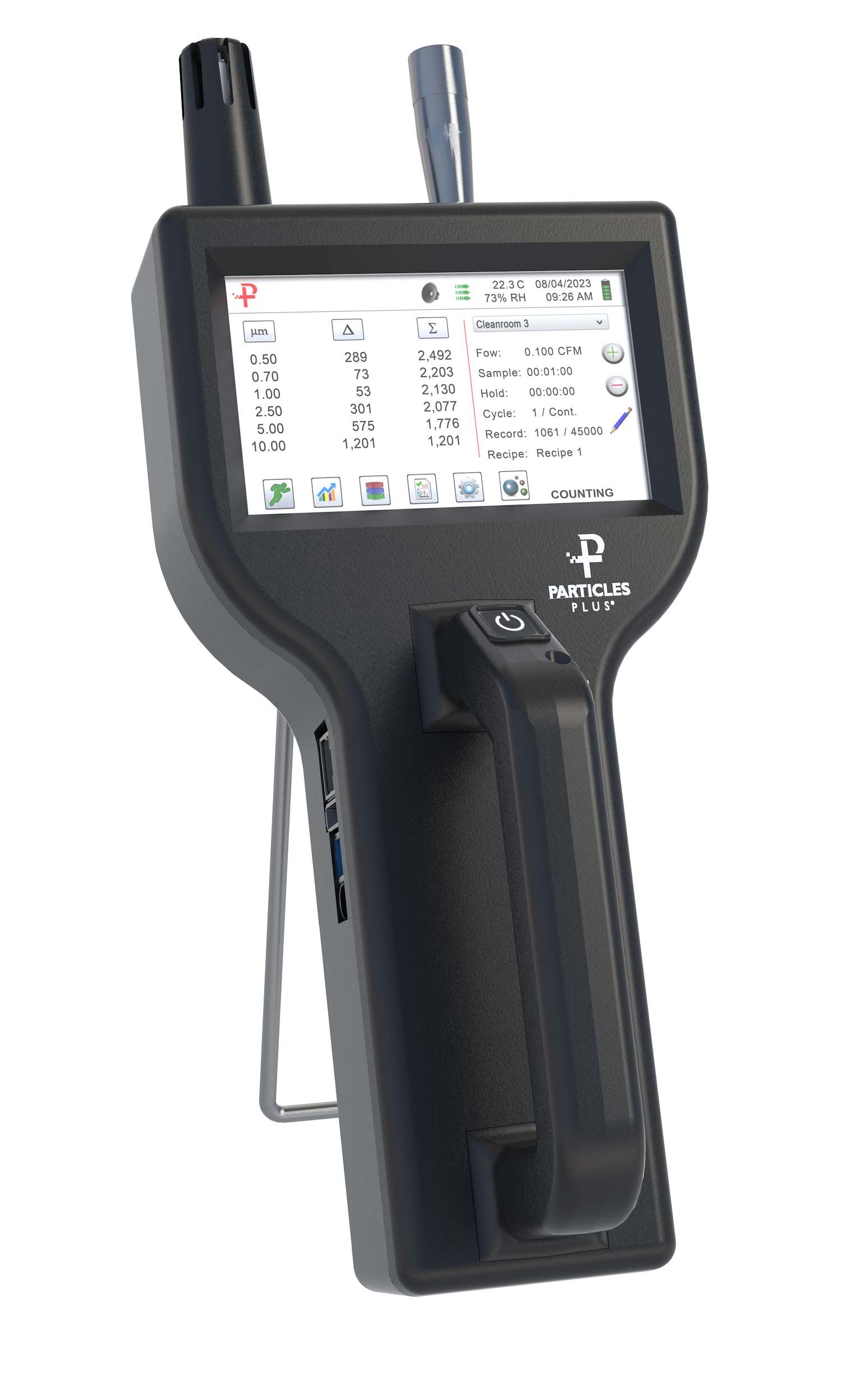

The Particles Plus® 8506 Handheld Particle Counter measures 0.5 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus® data-download software. Particles Plus® counters can be controlled and monitored remotely via web browser. The 8506 also has a mass concentration mode that approximates density in μg/m³.

All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 8506 ensures compliance with an on-board pulse height analyzer.

Measures 0.5 μm to 25.0 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Integrated handle for one-handed operation
Large easy-to-use icon driven color touch screen display
Temperature and relative humidity probe included
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232
Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm
User-definable reports
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection molded plastic enclosure

2 year limited warranty. Extended warranties available.

Size Range 0.5 to 25.0 μm
Size Channels Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm variable binning
Flow rates 2.83 LPM (0.1 CFM)
Concentration Limit 15,000,000 Particles/ft³ @ 5% coincidence loss
Battery Run Time 10 hours
Light Source Long life laser diode
Counting Efficiency 50% @ 0.5 μm; 100% for particles >0.75 μm per JIS
Zero Count <1 count / 60 minutes (<1 particles / 6 ft³). No fault count subtraction.
Count Modes Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration
Count Alarms 1 to 9,999,999 counts
Calibration NIST traceable
Display 4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Printer (Optional) External thermal printer
Vacuum Source Internal pump with automatic flow control
Filtered Exhaust Internal HEPA filter
Number of Channels 6
Custom Size Channels Calibration for custom size channels available
Audible Alarm Adjustable built-in alarm
Battery Removable Li-ion
Battery Recharge Time 4 hours within instrument (<2 hours with external battery charger)
Reports ISO 14644-1, EU GMP Annex 1, FS 209E
Recipes 50 user-configurable recipes
Communication Modes Ethernet and USB
Optional Communication Modes Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor Includes temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Alarm Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Standards ISO 21501-4 and JIS B9921
Calibration Recommended minimum once per year
External Surface High impact injection molded plastic
Dimensions (L x W x H) 10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes
Weight 2.2 lb (1.0 kg)
Accessories Operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, data download software, USB cable, power supply & cable
Optional Accessories Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes
Buffer Memory 45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout
Sample Locations Up to 1,000 locations 20 characters long
Sample Time 1 second to 99 hours
Power 110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty

2 year limited warranty. Extended warranties available.

8506

AS 99015 Handheld Carrying Case
EE 80093 Wireless 802.11 b g Output with Antenna
EE 80003A Battery 55Wh
AS 99005A External 55Wh Battery Charger

Carrying Case
Part Number: AS-99015

Wireless 802.11 b/g with Output Antenna
Part Number: EE-80092

Battery 55Wh
Rechargeable & Removable
Part Number: EE-80003A

External 55h Battery Charger
(For EE-80003A)
Part Number: AS-99005A

EE 80014A Temperature Humidity Probe
AS 99002 Filter 0.1 CFM 2.83 LPM
AS 99002A Filter Assembly 0.1 CFM 2.83LPM
20170920 124604 1

Temperature and Humidity Probe
Part Number: EE-80014A

Filter
0.1 CFM (2.83 LPM)
Part Number: AS-99002

Filter Assembly
0.1 CFM (2.83 LPM)
Part Number: AS-99002A

RS-485/232
Connector (5 POS)
Part Number: EE-79015A

PS 12041 Isoprobe Threaded 0.1 CFM 2.83 LPM Ni Plated Al
PS 12070 Isoprobe Threaded 0.1 CFM 2.83 LPM Stainless
PS 12022 Isoprobe Barbed 0.1 CFM 2.83 LPM Stainless
PS 12005 0.125 inch Inlet fitting

Isoprobe Threaded (Ni Plated Al)
0.1 CFM (2.83 LPM)
Part Number: PS-12041

Isoprobe Threaded (Stainless)
0.1 CFM (2.03 LPM)
Part Number: PS-12070

Isoprobe Barbed (Stainless)
0.1 CFM (2.83 LPM)
Part Number: PS-12022

Inlet Fitting Barbed
1/8 (Stainless)
Part Number: PS-12005

AS 99011 External Thermal Printer 2 Rolls Paper
AS 99012 External Thermal Printer Paper
AS 99013 External Thermal Printer Cleanroom Paper 10 Pack
2A Power Supply

External Thermal Printer
Includes 2 Rolls of Paper
Part Number: AS-99011

Thermal Printer Paper
Single Roll
Part Number: AS-99012

Thermal Printer Paper
Cleanroom Paper (10 Pack)
Part Number: AS-99013

Power Supply
15V ~2A 100-240 VAC
Part Number: EE-80127

EE 80128 Power Connector USA Japan
EE 80129 Power Connector EU Korea
EE 80130 Power Connector UK MY SG
EE 80131 Power Connector Australia China

Power Supply Connector
USA, Japan, Philippines, Taiwan
Part Number: EE-80128

Power Supply Connector
Europe & Korea
Part Number: EE-80129

Power Supply Connector
UK, Malaysia & Singapore
Part Number. EE-80130

Power Supply Connector
China & Australia
Part Number: EE-80131

AS 99019 Sample Tubing .375 OD x .250 ID
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot
MN 2400X Instrument Management Software User Manual
AS 99022 USB Cable 6ft 1.8m

Tubing (per foot)
3/8" OD (1/4" ID)
Part Number: AS-99019

Tubing (per foot)
3/8" OD (1/4" ID) Bev-A-Line XX
Part Number: AS-99037

IMS Software & User Manual (USB Key)
Part Number: MN-24001

USB Cable
6ft (1.8m)
Part Number: AS-99022
